YC YL SERIES  MOTORS

YL-MOTOR

  • YL series single phase dual-capacitor asynchronous motors are designed and produced in accordance with state standards, and have out-standing construction of starting and operation, are of low noise, compact imensions,light weight,easy maintenance, etc.
  • These motors can be widely used in air compressors,pumps,fans,refrigeration,medical instruments as well as small machines,
    etc. especially for occasion where only single
  • phase electricity is available.
    Protection type: IP44 Insulation class: B
    Rated voltage: 220V Cooling type: IC0141
    Duty type: continuous running Rated frequency: 50Hz
  PERFORMANCE DATA
Type
Power
Current
(A)
Power Factor
EFF.
(%)
Speed
(r/min)
STARTING CURRENT
RATED CURRENT
STARTING TORQUE
RATED TORQUE
MAX TORQUE
RATEDTORQUE
HP
KW

YL711-2

1/2

0.37

2.73

0.92

67

2800

16

1.8

1.8

YL712-2

3/4

0.55

3.88

0.92

70

2800

21

1.8

1.8

YL801-2

1

0.75

4.79

0.95

75

2800

29

1.8

1.8

YL802-2

1.5

1.1

6.93

0.95

76

2820

40

1.8

1.8

YL90S-2

2

1.5

9.44

0.95

76

2820

55

1.7

1.8

YL90L-2

3

2.2

13.7

0.95

77

2830

80

1.7

1.8

YL711-4

1

0.25

2.0

0.92

62

1400

12

1.8

1.8

YL712-4

1/2

0.37

2.8

0.92

65

1400

16

1.8

1.8

YL801-4

3/4

0.55

3.88

0.92

70

1400

21

1.8

1.8

YL802-4

1

0.75

5.1

0.92

73

1400

29

1.7

1.8

YL90S-4

1.5

1.1

7.0

0.95

75

1420

40

1.7

1.8

YL90L-4

2

1.5

9.44

0.95

76

1420

55

1.7

1.8

YL100L1-4

3

2.2

13.7

0.95

77

1420

80

1.7

1.8

YL100L2-4

4

3

18.4

0.95

78

1420

110

1.7

1.8

YL112M1-4

4

3

18.4

0.95

78

1440

110

1.7

1.8

YL112M2-4

5

3.7

22.2

0.95

80

1440

138

1.7

1.8

YL132SA-4

4

3

18.4

0.95

78

1440

110

1.7

1.8

YL132SB-4

5

3.7

22.2

0.95

80

1440

138

1.7

1.8

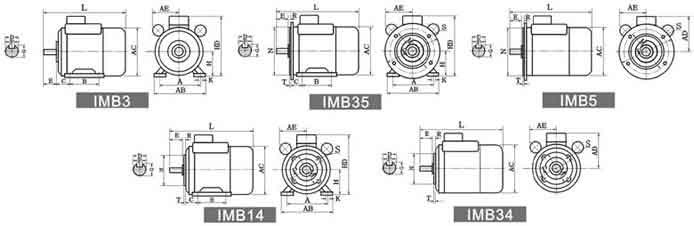

OVERALL & INSTALLATION DIMENSIONS




Frame Size
Mounting Dimensions (mm)
Overall Dimensions (mm)
IMB14 IMB35
IMB5 IMB35
A
B
C
D
E
F
G
H
K
M
N
P
R
S
T
M
N
P
R
S
T
AB
AC
AD
AE
HD
L
71
112
90
45
14
30
5
11
71
7
130
110
160
0
10
3.5
-
-
-
-
-
-
145
145
140
105
180
255
80
125
100
50
19
40
6
15.5
80
10
165
130
200
0
12
3.5
-
-
-
-
-
-
160
165
150
120
200
295
90S
140
100
56
24
50
8
20
90
10
165
130
200
0
12
3.5
-
-
-
-
-
-
180
185
160
130
240
370
90L
140
125
56
24
50
8
20
90
10
165
130
200
0
12
3.5
-
-
-
-
-
-
180
185
160
130
240
400
100L
160
140
63
28
60
8
24
100
12
-
-
-
-
-
-
215
180
250
0
15
4
205
220
180
130
260
430
112M
190
140
70
28
60
8
24
112
12
-
-
-
-
-
-
215
180
250
0
15
4
245
250
190
140
300
455
132S
216
140
89
38
80
10
33
132
12
-
-
-
-
-
-
215
230
300
0
15
4
280
290
210
155
350
525
