YC YL SERIES  MOTORS



    YC series heavy-duty single-phase motors are suitable for driving small machines and water pumps,especially for family or workshops where only single-phase electric supply are available. Conforming to"IEC"designed with advanced techniques and made from best materials, the motors have pleasant appearance and good performance.

    YC series motors are of IP44, totally enclosed and fan-cooled. Motor of rated output of 3HP and below are capacitor-started, when operating under rated voltage, under 50Hz,has a starting torque as high as 3times the rated tone and under 60Hz,the torque can be 2.75 times the rated one. Motors of 4HP and above are of capacitor start and run. They have the advantages of high torque,steady running, low the mal rise, lower noise and greater overload performan.
YC-MOTOR



PERFORMANCE DATA

TYPE
POWER
CURRENT
(A)
POWER
FACTOR
EFF.
(%)
SPEED
(r/min)
STARTING CURRENT
RATED CURRENT
STARTING TORQUE
RATED TORQUE
MAX TORQUE
RATED TORQUE
HP
KW
YC80A-2

1/2

0.37

3.99

0.74

57

2850

6.5

3

1.8

YC80B-2

3/4

0.55

5.04

0.74

67

2850

6.5

3

1.8

YC80C-2

1

0.75

6.68

0.75

68

2850

6.5

3

1.8

YC90S-2

1.5

1.1

8.93

0.8

70

2850

7

2.8

1.8

YC90L-2

2

1.5

11.4

0.82

73

2870

7

2.8

1.8

YC100L-2

3

2.2

16.5

0.82

74

2900

7

2.5

1.8

YC112M1-2

4

3

21.4

0.84

76

2900

7

2.2

1.8

YC112M2-2

5

3.7

24.8

0.86

79

2900

7

2.2

1.8

YC80A-4

1

0.25

3.52

0.62

52

1400

6

3

1.8

YC80B-4

1/2

0.37

4.69

0.64

56

1400

6

3

1.8

YC80C-4

3/4

0.55

6.0

0.65

64

1400

6

3

1.8

YC90S-4

1

0.75

7.5

0.72

63

1400

6.5

2.8

1.8

YC90L-4

1.5

1.1

10.4

0.72

67

1420

6.5

2.8

1.8

YC100L-4

2

1.5

13.0

0.73

72

1440

6.5

2.8

1.8

YC112M-4

3

2.2

18.5

0.74

73

1450

6.5

2.5

1.8

YC132SA-4

4

3

22.4

0.8

76

1450

6.5

2.2

1.8

YC132SB-4

5

3.7

26.0

0.82

79

1450

6.5

2.2

1.8

YC132M-4

5

3.7

28

0.85

79

1470

6

3

2.0

YC132L-4

7.5

5

36

0.86

79

1470

6

3

2.0

YC160M-4

10

7.5

42

0.87

79

1470

6

3

2.0

   注:表中的电流值为额定电压,为220V额定频率为50Hz时的数值。

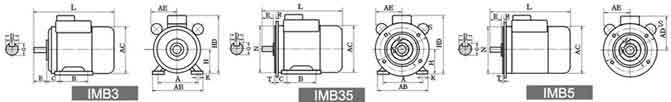

OVERALL & INSTALLATION DIMENSIONS





Frame Size
Mounting  Dimensions (mm)
Overall Dimensions (mm)
A
B
C
D
E
F
G
H
K
M
N
P
R
S
T
AB
AC
AD
AE
HD
L
80
125
100
50
19
40
6
15.5
80
10
165
130
200
0
12
3.5
160
165
150
110
200
295
90S
140
100
56
24
50
8
20
90
10
165
130
200
0
12
3.5
180
185
160
120
240
370
90L
140
125
56
24
50
8
20
90
10
165
130
200
0
12
3.5
180
185
160
120
240
400
100L
160
140
63
28
60
8
24
100
12
215
180
250
0
15
4
205
220
180
130
260
430
112M
190
140
70
28
60
8
24
112
12
215
180
250
0
15
4
245
250
190
140
300
455
132S
216
140
89
38
80
10
33
132
12
215
230
300
0
15
4
280
290
210
150
350
525
160M
254
210
108
42
110
12
37
160
15
300
250
350
0
19
5
325
325
255

385
600

Back          Next page
