speed reducer

speed reducer

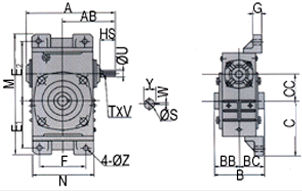

WKO	Shaft Direction

SIZE	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	M	N	G	Z	INPUT SHAFT			OUTPUT SHAFT			KG
SIZE	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	M	N	G	Z	HS	U	T?	S	W	Y	KG
50	1/10 1/20 10 1/40 1/50 1/60	175	105	107	53.5	50	110	50	90	110	90	225	115	14	11	30	12	4?.5	20	6	22.8	6.5
60		195	120	117	58.5	55	120	60	102	129	100	259	126	15	11	40	15	5?	25	8	28.3	9
60		195	120	117	58.5	55	120	60	102	129	100	259	126	15	11	40	15	5?	25	8	28.3	9
70		234	140	131	65.5	65	135	70	120	155	120	305	155	20	15	40	18	5?	30	8	33.3	14
80		264	160	144	72.0	70	155	80	140	180	140	350	174	20	15	50	22	7?	35	10	38.3	21
100		322	190	175	87.5	90	180	100	165	215	190	410	224	20	15	50	25	7?	40	12	43.3	33
120		385	230	200	100	100	218	120	195	255	220	495	264	25	18	65	30	7?	45	14	48.8	51
135		435	260	212	106	110	253	135	230	285	260	560	304	30	18	75	35	10?.5	60	18	64.4	75
155		494	302	312	156	140	275	155	250	305	280	605	330	35	20	85	40	10?.5	70	20	74.9	114
175		548	324	334	167	150	300	175	273	348	320	675	370	40	20	85	45	12?.5	80	22	85.4	150
