speed reducer

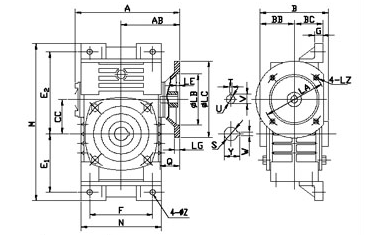

WDKO	Shaft Direction

SIZE	KW	RATIO	A	AB	B	BB	BC	CC	E₁	E2	F	M	N	G	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT		KG
																LA	LB	LC	LE	LG	LZ	Q	U	T?	S	W?
40	0.12	1/10 1/20 10 1/40 1/50 1/60	138	76	90	45	45	40	72	97	70	195	96	10	9	115	95	140	5	10	M8	25	11	4?2.8	20	6?2.8	5
50	0.18		155	84	107	53.5	50	50	90	110	90	225	115	14	11	115	95	140	5	10	M8	25	11	4?2.8	20	6?2.8	8.5
60	0.37		170	92	117	58.5	55	60	102	129	100	257	126	15	11	130	110	160	5	12	M8	35	14	5?6.3	25	8?8.3	12
70	0.37		206	110	131	65.5	65	70	120	155	120	305	155	20	15	130	110	160	5	12	M8	35	14	5?6.3	30	8?3.3	18
	0.75															165	130	200		15	M10	45	19	6?1.8
80	0.75		232	128	144	72.2	70	80	140	180	140	350	174	20	15	165	130	200	5	15	M10	45	19	6?1.8	35	10?8.3	26
	1.5																					55	24	8?7.3
100	1.5		266	145	175	87.5	90	100	165	215	190	410	224	20	15	165	130	200	5	15	M10	55	24	8?7.3	40	12?3.3	39
120	2.2		340	182	200	100	100	120	195	255	220	495	264	25	18	215	180	250	5	18	M12	65	28	8?1.3	45	14?8.8	61
	3.0
135	3.0		375	200	212	106	110	135	230	285	260	560	304	30	18	215	180	250	5	18	M12	65	28	8?1.3	60	18?4.4	88
	4.0
155	5.5		442	236	312	156	140	155	250	305	280	605	330	35	20	265	230	300	5	20	M12	85	38	10?1.3	70	20?4.9	124
175	7.5		465	240	334	167	150	175	273	348	320	675	370	40	20	265	230	300	6	18	M12	85	38	10?1.3	80	22?5.4	158
