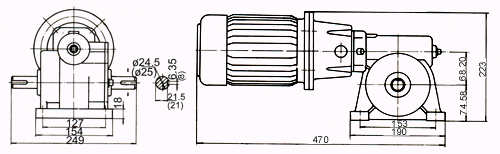

speed reducer

R68

Motor with 4 poles 0.37kw matched with the reducer. Ratio 30:1 output speed 48r/min
maximum output torque 60N?m
Ratio 50:1 output speed 28r/min
maximum output torque 100N?m
Both metric and inch dimension of output shaft are available to be selected by user.Our products may be widely used in various kinds of MACHINERY.Inquiry and order are welcome.
