KA(WPKA)

Shaft Direction
speed reducer

speed reducer

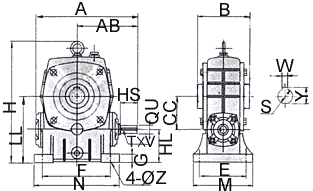

SIZE	RATIO	A	AB	B	CC	E	F	H	HL	LL	M	N	G	Z	INPUT SHAFT			OUTPUT SHAFT			KG
SIZE	RATIO	A	AB	B	CC	E	F	H	HL	LL	M	N	G	Z	HS	U	T?	S	W?		KG
50	1/10 1/20 10 1/40 1/50 1/60	175	105	107	50	95	110	180	50	100	120	140	15	11	30	12	4?.5	20	6?2.8		7
60		195	120	117	60	105	120	210	60	120	130	150	20	11	40	15	5?	25	8?8.3		10.5
70		234	140	131	70	115	150	243	70	140	150	190	20	15	40	18	5?	30	8?3.3		14.5
80		264	160	144	80	135	180	273	80	160	170	220	20	15	50	22	7?	35	10?8.3		22
100		322	190	175	100	155	220	340	100	200	190	260	25	15	50	25	7?	40	12?3.3		36
120		385	230	200	120	180	260	405	120	240	230	320	30	18	65	30	7?	45	14?8.8		63
135		435	260	212	135	200	290	455	135	270	250	350	30	18	75	35	10?.5	60	18?4.4		80
155		507	302	312	155	220	320	490	135	290	280	390	38	20	85	40	10?.5	70	20?4.9		114
175		550	325	334	175	250	350	565	160	335	310	430	40	20	85	45	12?.5	80	22?5.4		150
200		670	350	346	200	290	390	625	175	375	360	480	42	22	95	50	12?.5	85	22?9.4		218
