speed reducer

speed reducer

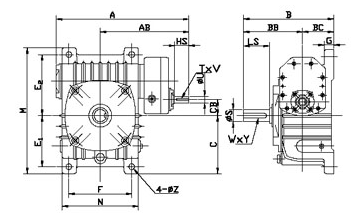

FO	Shaft Direction

SIZE	RATIO	A	AB	B	BB	BC	CB	E1	E2	F	G	M	N	Z	INPUT SHAFT			OUTPUT SHAFT
SIZE	RATIO	A	AB	B	BB	BC	CB	E1	E2	F	G	M	N	Z	HS	U	TV	LS	S	WY
80	1/80 1/90 1/100 1/120 1/150 1/180	317	213	210	140	70	30	130	150	140	20	320	176	15	35	15	53	65	32	104.5
100		390	258	245	155	90	40	155	180	190	30	375	226	15	40	18	53	75	38	104.5
120		437	282	285	185	100	50	185	215	220	30	450	266	18	40	20	53	85	45	124.5
135		496	321	320	210	110	60	210	235	260	35	495	306	18	50	25	74	95	55	155
155		559	367	392	252	140	75	245	295	290	40	590	350	20	60	30	74	110	60	155
175		630	407	412	262	150	75	267	323	320	45	640	394	20	75	35	104.5	110	65	186
