Casting iron worm reducers|reducers made in China

speed reducer

speed reducer

speed reducer

speed reducer

speed reducer

speed reducer

speed reducer

speed reducer

speed reducer

DA(WPDA)

Shaft Direction
speed reducer

speed reducer

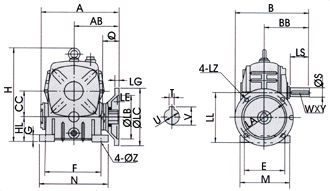

SIZE	KW	RATIO	A	AB	B	BB	CC	E	F	G	H	HL	LL	M	N	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT			Kg
																	LA	LB	LC	LE	LG	LZ	Q	U	T?	LS	S	W?
50	0.18	1/10 1/20 10 1/40 1/50 1/60	165	95	175	95	50	95	110	15	180	50	100	120	140	11	115	95	140	5	10	M8	25	11	4?2.5	40	17	5?	7
60	0.37		185	105	190	110	60	105	120	20	205	60	120	130	150	11	130	110	160	5	12	M8	35	14	5?6.3	50	22	7?	11
70	0.37		209	115	210	130	70	115	150	20	235	70	140	150	190	15	130	110	160	5	12	M8	35	14	5?6.3	60	28	7?	15
	0.75				230												165	130	200		15	M10	45	19	6?1.8
80	0.75		242	135	240	140	80	135	180	20	265	80	160	170	220	15	165	130	200	5	15	M10	45	19	6?1.8	65	32	10?.5	23
	1.5																						55	24	8?7.3
100	1.5		310	175	255	155	100	155	220	25	363	100	200	190	260	15	165	130	200	5	15	M10	55	24	8?7.3	75	38	10?.5	38
120	2.2		361	205	310	185	120	180	260	30	424	120	240	230	320	18	215	180	250	5	18	M12	65	28	8?1.3	85	45	12?.5	65
	3.0
135	3.0		412	235	335	210	135	200	290	30	481	135	270	250	350	18	215	180	250	5	18	M12	65	28	8?1.3	95	55	15?	84
	4.0
155	5.5		442	250	402	252	155	220	320	32	536	135	290	280	380	20	265	230	300	5	22	M12	85	38	10?1.3	110	60	15?	120
