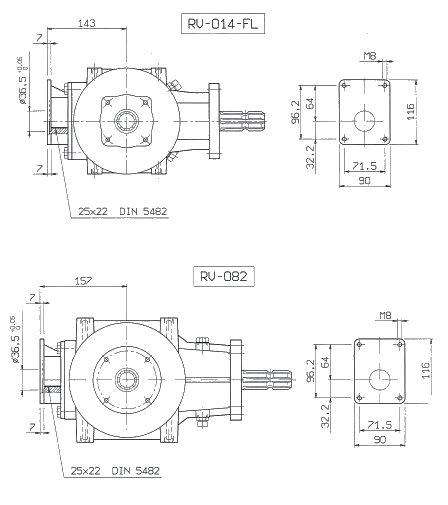

TYPE XL-014-FL.XL-082

GEAR RATIO	INPUT RPM	OUTPUT RPM	INP. HP	INP. KW	OUT.TORQ.Nm	GEAR SPECIFICATION	WEIGHT
1 : 1.90	540	1026	55	41	346
1: 3	540	1620	50	37	210

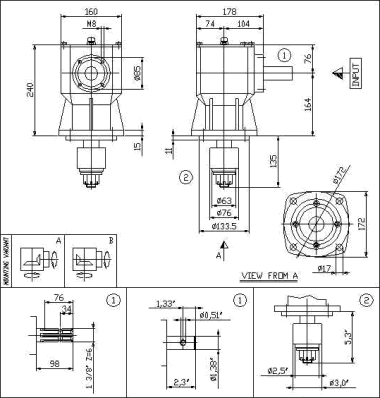

        TYPE VT-030

GEAR RATIO	INPUT RPM	OUTPUT RPM	INP. HP	INP. KW	OUT.TORQ.Nm	GEAR SPECIFICATION	WEIGHT	LUBRICATING OIL
1 : 1.47	540	794	30	30	342		Kg 24	TYPE	QUANTITY 1
1 : 1.71	540	923	26	26	258		Kg 24	SAE.90EP
1: 1.93	540	1042	22.5	22.5	196		Kg 24
