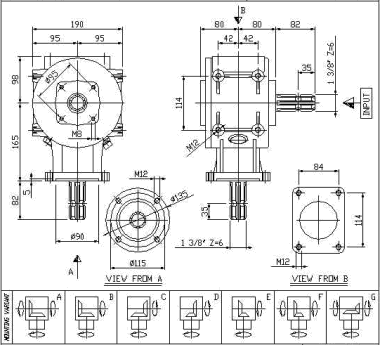

TYPE XL-014-FL


GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL
1: 1.90 540

1026

55

41

346 Kg.22 TYPE QUANTITY 1
1: 2.50 540 1350

52

39

262 Kg.22 SAE.90EP

1.3

1: 3 540 1620

50

37

210 Kg.22
1: 5.3 540 2862

27

20

64 Kg.22
1.9: 1 540 284

38

28

910 Kg.22
2.5: 1 540 216

33

25

1039 Kg.22
3: 1 540 180

28

21

1058 Kg.22

5.3: 1

540

102

14

10.5

933 Kg.22

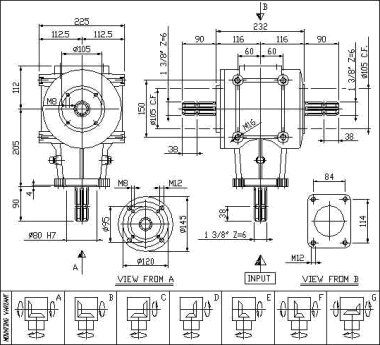

 TYPE XL-082


GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL

1:1

540

540

88

66

1108 Kg.32 TYPE QUANTITY 1

1: 1.9

540

1026

85

63.5

563 Kg.32 SAE.90EP

1: 2.5

540

1350

78

58.5

393 Kg.32

1: 3

540

1620

76

57

319 Kg.32

1.9: 1

540

284

74

55.5

1772 Kg.32

2.5: 1

540

216

57

42.5

1795 Kg.32

3: 1

540

45

180

1700 Kg.32
