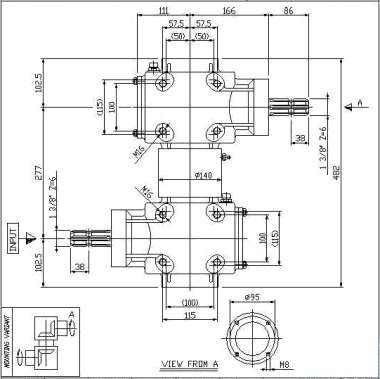

TYPE XL-11S-C2


GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL

1: 1

540

540

60

45

756

TYPE QUANTITY 1

1: 1.35

540

729

60

45

560

SAE.90EP

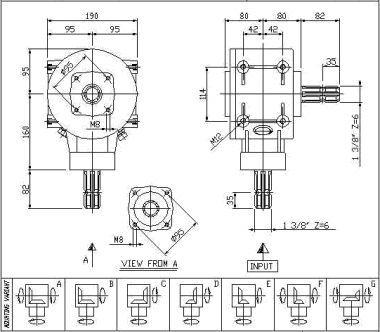

TYPE XL-014


GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL

1: 1.90

540

1026

55

41

140   Kg 21 TYPE QUANTITY 1

1: 2.50

540

1350

52

39

    Kg 21 SAE.90EP

1.3

1: 3

540

1620

50

37

    Kg 21

1: 5.3

540

2862

27

20

    Kg 21

1.9: 1

540

284

38

28

    Kg 21

2.5: 1

540

216

33

25

    Kg 21

3: 1

540

180

28

21

    Kg 21

5.3: 1

540

102

14

10.5

    Kg 21
         Kg 21
