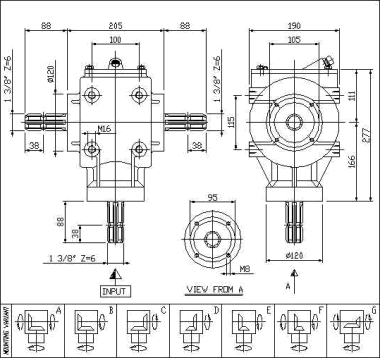

TYPE XL-11-S


GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL

1: 1

540

540

5

41

690

Kg 23 TYPE QUANTITY 1

1: 1.58

540

853

55

41

438

Kg 23

SAE.90EP

1: 1.9

540

1026

55

41

364

Kg 23

1: 2.9

540

1566

45

33

195

Kg 23

1.58: 1

540

342

43

32

855

Kg 23

1.9: 1

540

284

40

30

960

Kg 23

2.9: 1

540

186

29

21

1050

Kg 23

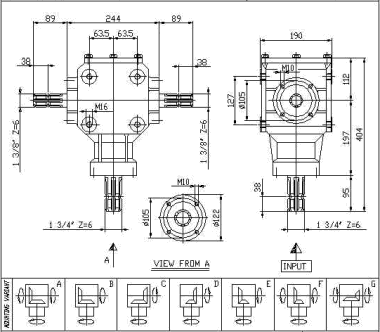

TYPE XL-080


GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL

1: 2.30

540 / 1000

1242 / 2300

60 / 92

44 / 68

339 / 281

Kg 31 TYPE QUANTITY 1

1: 1.92

540 / 1000

1037 / 1920

70 / 108

51 / 79

474 / 395

Kg 31 SAE.90EP

1: 1.57

540 / 1000

848 / 1570

91 / 140

67 / 103

754 / 627

Kg 31

1: 1.35

540 / 1000

729 / 1350

105 / 161

77 / 118

1012 / 838

Kg 31

1: 1

540 / 1000

540 / 1000

110 / 170

81 / 125

1431 / 1194

Kg 31

1.35: 1

540 / 1000

400 / 741

85 / 130

62 / 96

1493 / 1233

Kg 31

1.57: 1

540 / 1000

344 / 637

66 / 101

49 / 74

1348 / 1114

Kg 31

1.92: 1

540 / 1000

281 / 521

45 / 68

33 / 50

1124 / 917

Kg 31

2.30:1

540 / 1000

235 / 435

35 / 54

26 / 40

1047 / 873

Kg 31
