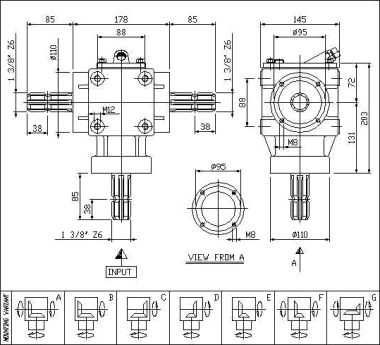

TYPE XL-S-8

GEAR RATIO	INPUT RPM	OUTPUT RPM	INP. HP	INP. KW	OUT.TORQ.Nm	GEAR SPECIFICATION	WEIGHT	LUBRICATING OIL
1: 1	540	540	36	36	453		Kg 15	TYPE	QUANTITY 1
1.46: 1	540	370	33	33	606		Kg 15	SAE.90EP
2: 1	540	270	25	25	630		Kg 15
2.9: 1	540	186	12	12	438		Kg 15
1: 1.46	540	788	33	33	284		Kg 15
1: 2	540	1080	25	25	157		Kg 15
1: 2.9	540	1566	15	15	65		Kg 15

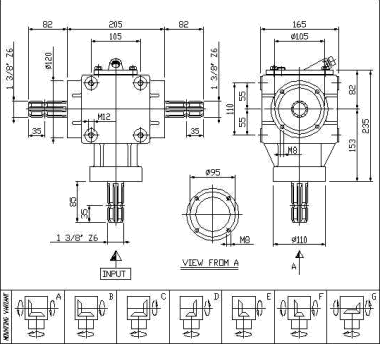

TYPE XL-S-9

GEAR RATIO	INPUT RPM	OUTPUT RPM	INP. HP	INP. KW	OUT.TORQ.Nm	GEAR SPECIFICATION	WEIGHT	LUBRICATING OIL
1: 1	540	540	45	33.5	566		Kg 21	TYPE	QUANTITY 1
1.46: 1	540	370	40	30	735		Kg 21	SAE.90EP	1.5
1.9: 1	540	284	33	25	790		Kg 21
2.9: 1	540	186	25	18	914		Kg 21
1: 1.46	540	788	42	31.5	362		Kg 21
1: 1.9	540	1026	38	28	252		Kg 21
1: 2.9	540	1566	35	26	152		Kg 21
