INDUSTRIAL CHAIN (PLASTIC ROLLER CHAIN)
| ||||

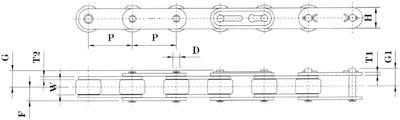

gold stone CHAIN NO. | pitch ×idth | poller | links | pin | average ultimate strength kgf | approx weight kg/m | ||||||
p ×w | dia | height | thickness | dia | lengths | |||||||
inch | m/m | R | H | T1 | T2 | D | F | G | G1 | |||
C2042EP |
1＂×5/16＂ |
25.40×7.95 |
15.88 | 11.70 | 1.50 | 1.50 | 3.96 | 8.20 | 9.30 | 10.00 | 45 | 0.49 |
C2052EP |
1-1/4＂×3/8＂ |
31.75×9.53 |
19.05 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 70 | 0.80 |
C2062HEP |
1-1/2＂×1/2＂ |
38.10×12.70 |
22.23 | 17.10 | 3.10 | 3.10 | 5.95 | 14.10 | 15.70 | 16.60 | 105 | 1.40 |
C2082HEP |
2＂×5/8＂ |
50.80×15.88 |
28.58 | 23.00 | 3.90 | 3.90 | 7.94 | 17.90 | 19.40 | 20.80 | 180 | 2.26 |
C2102HEP |
2-1/2＂×3/4＂ |
63.50×19.05 |
39.67 | 28.90 | 4.70 | 4.70 | 9.52 | 21.70 | - | 24.90 | 260 | 3.40 |
C2122HEP |
3＂×2＂ |
76.20×25.40 |
44.45 | 35.00 | 5.60 | 5.60 | 11.10 | 26.98 | - | 30.57 | 390 | 4.66 |
