BS/DIN ROLLER CHAIN

gold stone CHAIN NO.

pitch ??width

poller

links

pin

transverse pitch

average ultimate strength kgf

approx weight kg/m

p ??w

dia

height

thickness

dia

lengths

inch

m/m

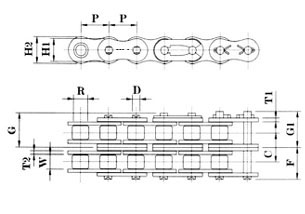

R

H1

H2

T1

T2

D

F

G

G1

C

05B-1

0.315"×0.118"

8.00×3.00

5.00

7.00

7.00

0.75

0.75

2.30

3.85

4.80

-

-

600

0.16

05B-2

0.315"×0.118"

8.00×3.00

5.00

7.00

7.00

0.75

0.75

2.30

6.65

7.64

-

5.64

1200

0.30

06B-1

0.375"×0.225"

9.525×5.72

6.35

8.10

8.10

1.00

1.25

3.28

6.10

7.40

-

-

1050

0.39

06B-2

0.375"×0.225"

9.525×5.72

6.35

8.10

8.10

1.00

1.25

3.28

11.20

12.30

-

10.24

1900

0.74

06B-3

0.375"×0.225"

9.525×5.72

6.35

8.10

8.10

1.00

1.25

3.28

16.30

17.40

17.80

10.24

2700

1.09

08B-1

0.5"×0.305"

12.70×7.75

8.51

10.20

11.80

1.50

1.50

4.44

8.20

9.50

-

-

1850

0.65

08B-2

0.5"×0.305"

12.70×7.75

8.51

10.20

11.80

1.50

1.50

4.44

15.30

16.70

-

13.92

3600

1.30

08B-3

0.5"×0.305"

12.70×7.75

8.51

10.20

11.80

1.50

1.50

4.44

22.20

23.50

23.80

13.92

4500

1.92

10B-1

0.625"×0.38"

15.875×9.65

10.16

13.00

14.60

1.65

1.65

5.06

9.60

11.10

-

-

2700

0.92

10B-2

0.625"×0.38"

15.875×9.65

10.16

13.00

14.60

1.65

1.65

5.06

17.90

19.40

-

16.59

5400

1.68

10B-3

0.625"×0.38"

15.875×9.65

10.16

13.00

14.60

1.65

1.65

5.06

26.20

27.50

28.20

16.59

8100

2.62

12B-1

0.75"×0.46"

19.05×11.68

12.07

16.00

16.00

1.80

1.80

5.67

11.10

12.60

-

-

3300

1.24

12B-2

0.75"×0.46"

19.05×11.68

12.07

16.00

16.00

1.80

1.80

5.67

20.80

22.40

-

19.46

6600

2.28

12B-3

0.75"×0.46"

19.05×11.68

12.07

16.00

16.00

1.80

1.80

5.67

30.60

31.90

32.50

19.46

9900

3.55

16B-1

1"×0.67"

25.4×17.02

15.88

20.80

20.80

3.20

4.00

8.27

17.70

19.25

20.20

-

7800

2.65

16B-2

1"×0.67"

25.4×17.02

15.88

20.80

20.80

3.20

4.00

8.27

33.64

35.16

36.16

31.88

15600

5.25

16B-3

1"×0.67"

25.4×17.02

15.88

20.80

20.80

3.20

4.00

8.27

49.58

51.12

52.12

31.88

23400

7.86

20B-1

1.25"×0.77"

31.75×19.56

19.05

26.00

26.00

3.50

4.50

10.18

20.50

-

23.50

-

10500

3.85

20B-2

1.25"×0.77"

31.75×19.56

19.05

26.00

26.00

3.50

4.50

10.18

38.73

-

41.72

36.45

19900

7.65

20B-3

1.25"×0.77"

31.75×19.56

19.05

26.00

26.00

3.50

4.50

10.18

56.95

-

59.95

36.45

29300

11.45

24B-1

1.5"×1"

38.10×25.40

25.40

33.0

33.0

5.20

6.00

14.62

26.65

-

32.35

-

18700

7.60

24B-2

1.5"×1"

38.10×25.40

25.40

33.00

33.0

5.20

6.00

14.62

50.83

-

56.53

48.36

35650

14.80

24B-3

1.5"×1"

38.10×25.40

25.40

33.00

33.0

5.20

6.00

14.62

75.00

-

80.72

48.36

52600

21.90
